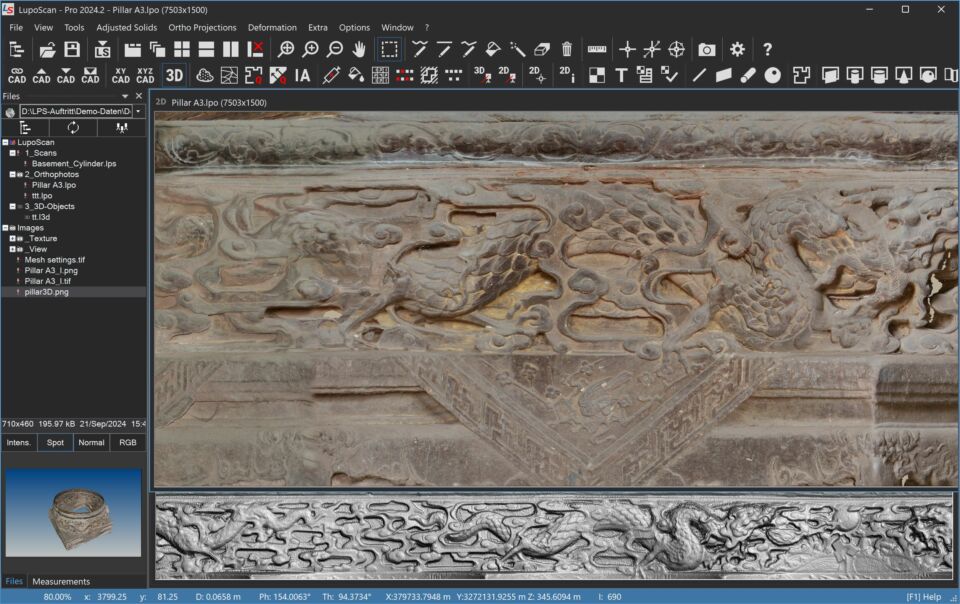

With LupoScan, surfaces of cylinders, cones, conical shapes, or even double-curved forms can be precisely unfolded into a flat plane. This allows round towers, tunnel tubes, tanks, or other structures to be accurately represented to scale in a plan.

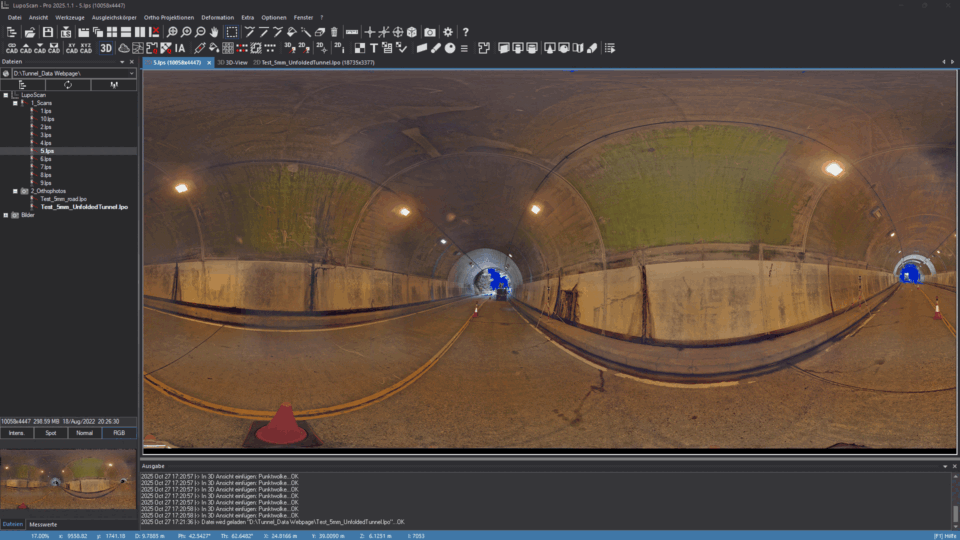

Unfolding and plan generation of tunnel surface
